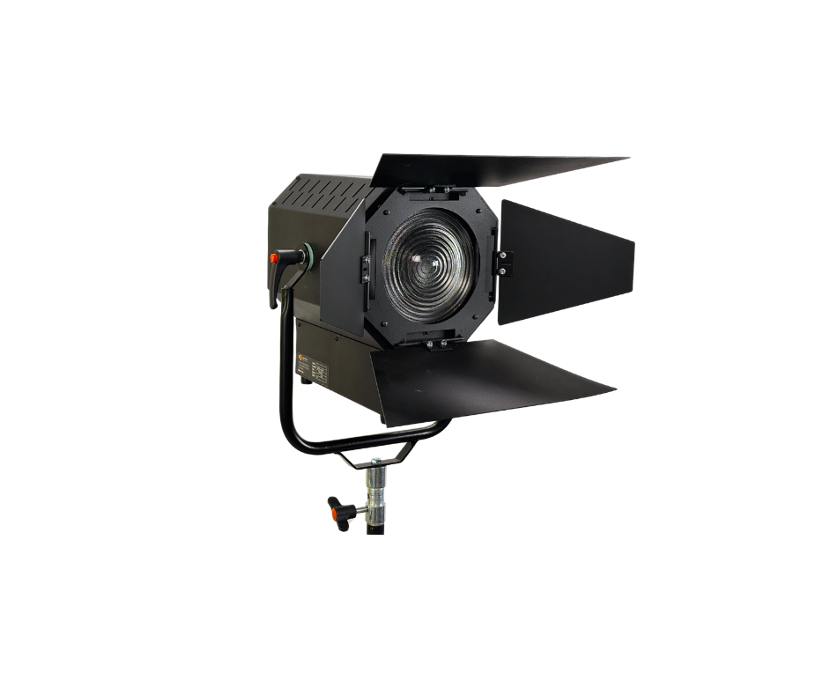

Optix 150-D

Optix 150-D (Daylight)

Headline: Crisp Daylight Optics in a Streamlined Frame.

The StixPro Optix 150-D offers the exact same premium optical architecture and 150mm glass Fresnel lens as its larger sibling, optimized into a highly efficient 150W daylight package. Weighing a nimble 6.9 kg, it is the ideal point-source solution for mid-sized studios, virtual production sets, and location setups that require a localized, high-intensity 5600K source.

Featuring 0–100% continuous flicker-free dimming, silent active thermal management, and full motorized zoom control via DMX, the 150-D provides flawless, repeatable beam shaping. The shared housing footprint allows it to seamlessly utilize the same barndoors and accessories as the rest of the 150mm line, maximizing your studio investment.

Technical Specifications (Draft Grid):

  • Control Options: On-board Control, DMX In, Wireless [INSERT BLUETOOTH / WI-FI]

  • Yoke Options: Standard Manual Yoke / Pole-Operated (P.O.) Yoke Option

  • Weight: 6.9 kg

  • Photometrics: [INSERT LUX VALUES AT 1M, 3M, 5M]



Technical Specifications

Light Aperture : Fresnel Lens 150 mm
Power : 120 W Nominal, 150 W Maximum
Color Temperature : 5600 K
CRI / TLCI : 93+
Dimming : 0 to 100% Continuous
Control : Control Panel / App Control Dmx 8/16 bit
LED Lifetime : up to 40.000 Hours
Input Range : 90 to 265 V, 50/60 Hz
IP Rating : IP 20
Beam Angle : 15° - 57°
Cooling : Active
Connection : Dmx In
Mounting : 28 mm Spigot (Junior Pin)
Housing Color : Black, Orange, Blue, Gray
Lighting Mode : Daylight
Dimensions : 290 x 200 x 300 mm
Weight : Manuel Version 6,8 kg
